We use the Orion BMS 2. The Battery Management System is a device in our car which monitors the state of the accumulator (HV battery). It measures voltage, current, and SoC and uses this information to safely manage the discharge rate and battery health.

Follow this guide to set up the Orion BMS for debugging.

Software Requirements

Orion BMS 2 Utility

  1. Go to the BMS product page https://www.orionbms.com/products/orion-bms-standard/.

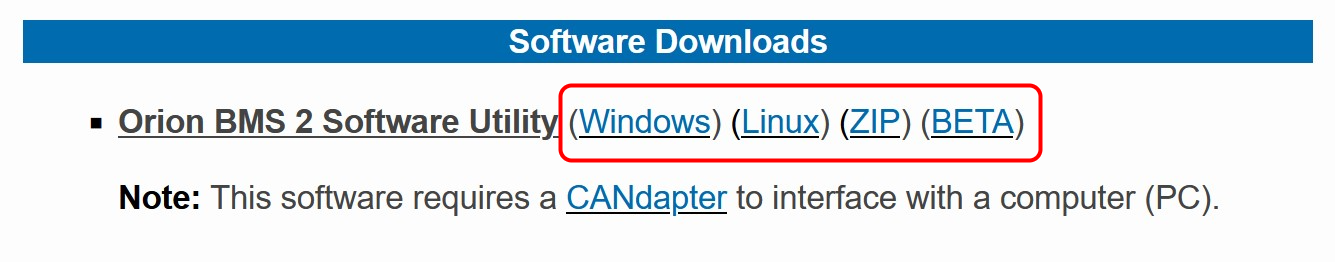

  2. Under Software Downloads, select the appropriate installer.

    software downloads

  3. Run the installer. Use the default settings.

    Error: Windows Protected your PC

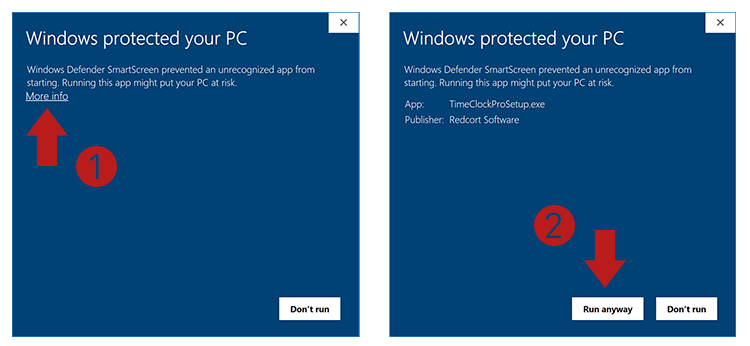

    If you encounter this error, select More Info then Run Anyway.

    run anyway

  4. Run the Orion BMS Utility. Install the Java Runtime Environment if prompted.

CANdapter

  1. Go to the BMS product page https://www.orionbms.com/products/orion-bms-standard/.

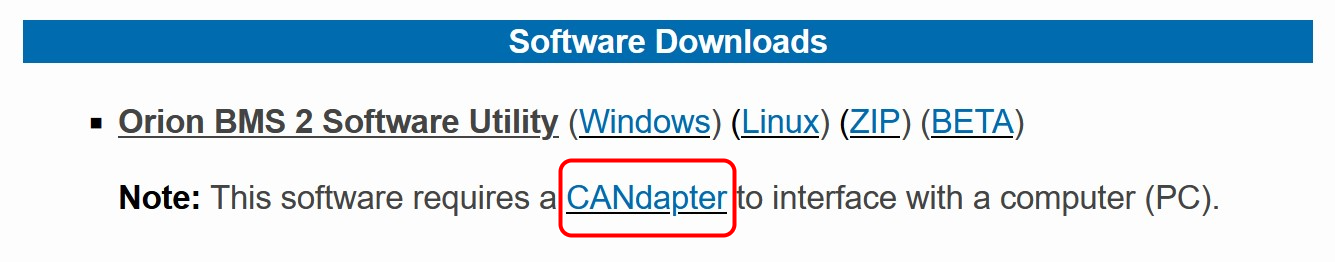

  2. Under Software Downloads, follow the CANdapter Link.

    CANdapter Link

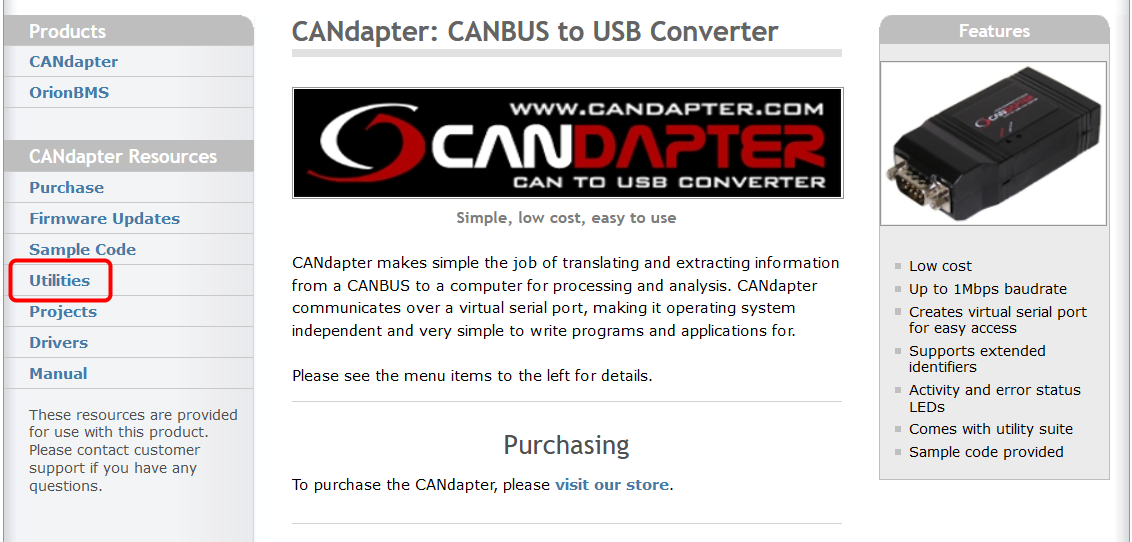

  3. Click on the Utilities menu.

    CANdapter Utilities

  4. Download the setup utility and install. Use the default settings.

Communicating

  1. "Connect to BMS"
  2. "500 baudrate"
  3. "Download config"
  4. "Yes, continue"
