Using VS Code and PlatformIO
Openning a Project

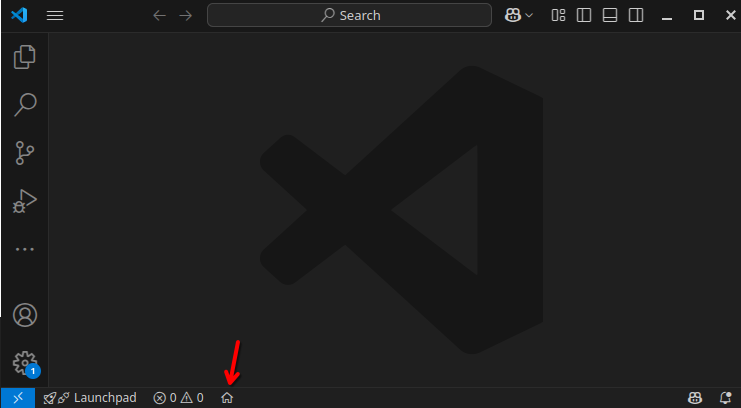

Open a new VS Code window. Go to the Platform IO homepage by clicking the icon in the Status Bar.
I don't see the
You can alternatively open the PlatformIO homepage running the Command Palette with F1 then typing PlatformIO: PlatformIO Home.

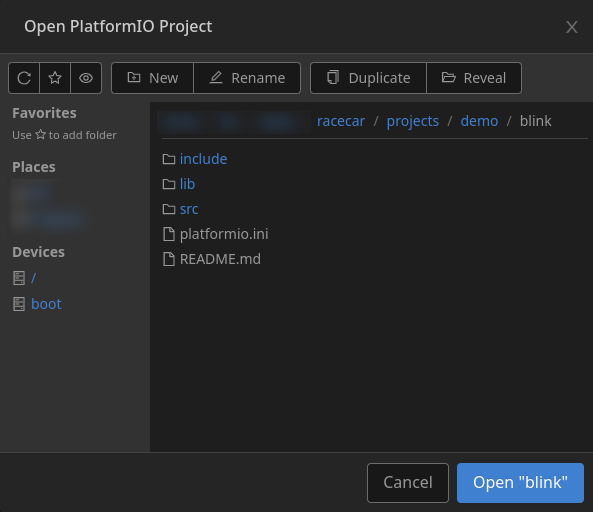

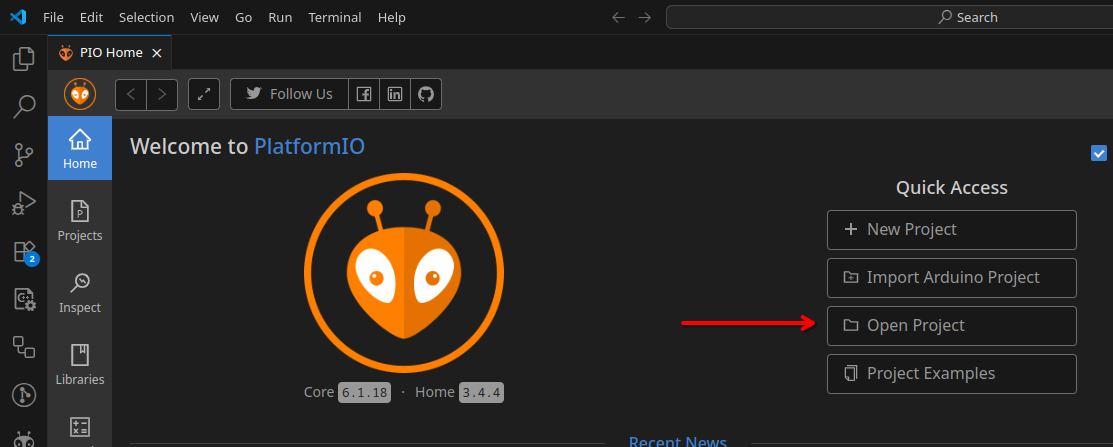

From PlatformIO Home, click Open Project and open racecar/projects/demo/blink.
You should now see the files and folders in for the blink project.
Project Structure

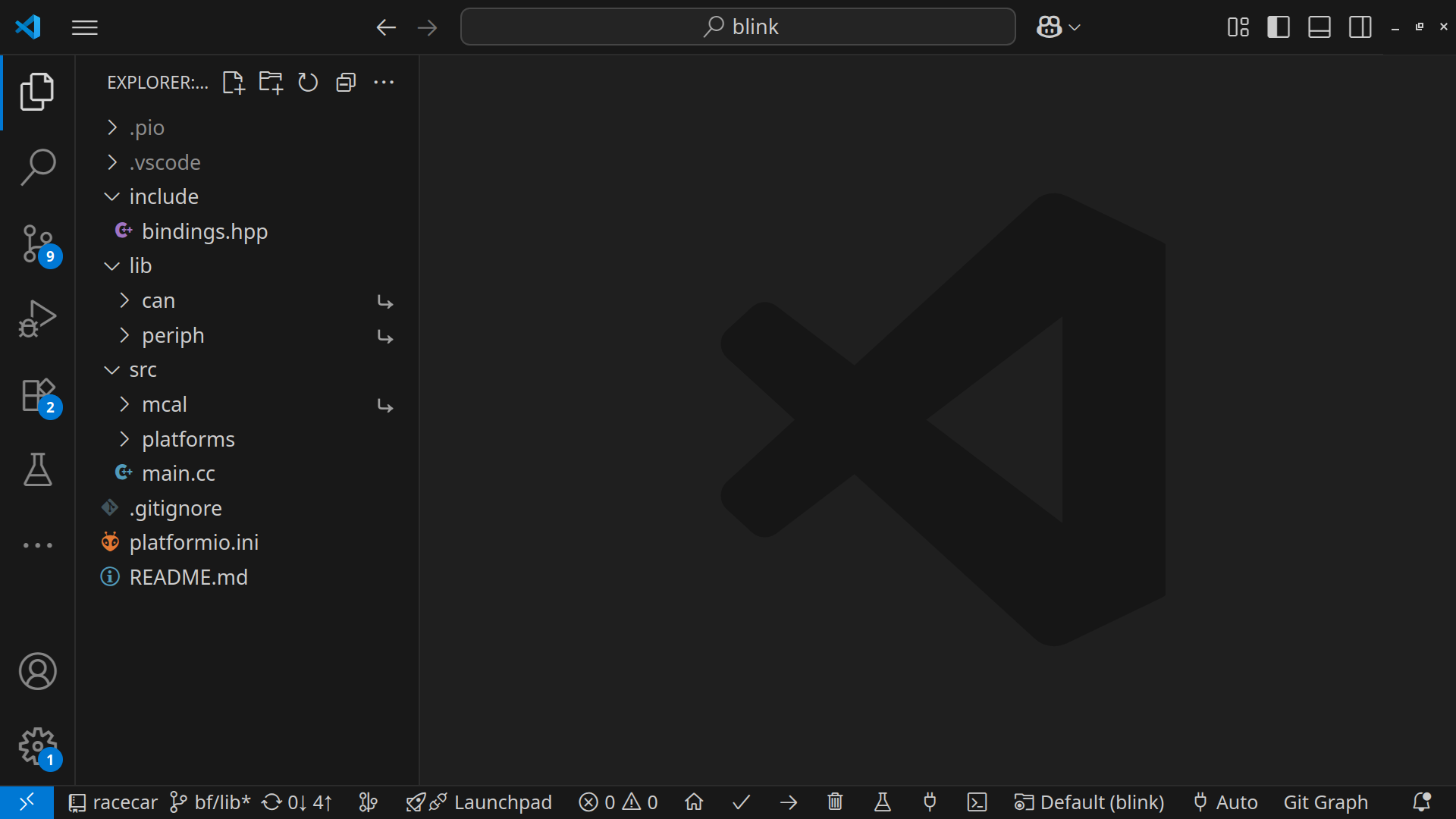

Every project uses the same structure, so let's explore the itema in the demo/blink project. Click on a file to open it in the VS Code window.
This file describes how to compile the project.
[platformio]
name = "Blink"
description = "A simple program to toggle a digital output."
[env]
... # omitted for simplicity
[common]
...
[env:stm32f767]
...
[env:stm32f469]
...
[env:cli]
...
[env:linux]
...
PlatformIO uses environments to let you define different compilation instructions for different platforms.
This file shows that the Blink project is defined for 4 environments: STM32F767, STM32F469, a generic Command Line Interface, and the Linux CLI.
What is the difference between the Linux and Generic CLI environments?
Linux computers have certain features that aren't available on Windows and Mac, namely it supports CAN at the kernel layer (see https://netmodule-linux.readthedocs.io/en/latest/howto/can.html).
This means that projects using CAN are better simulated on a Linux machine. The Blink project doesn't use CAN, so there is no difference.

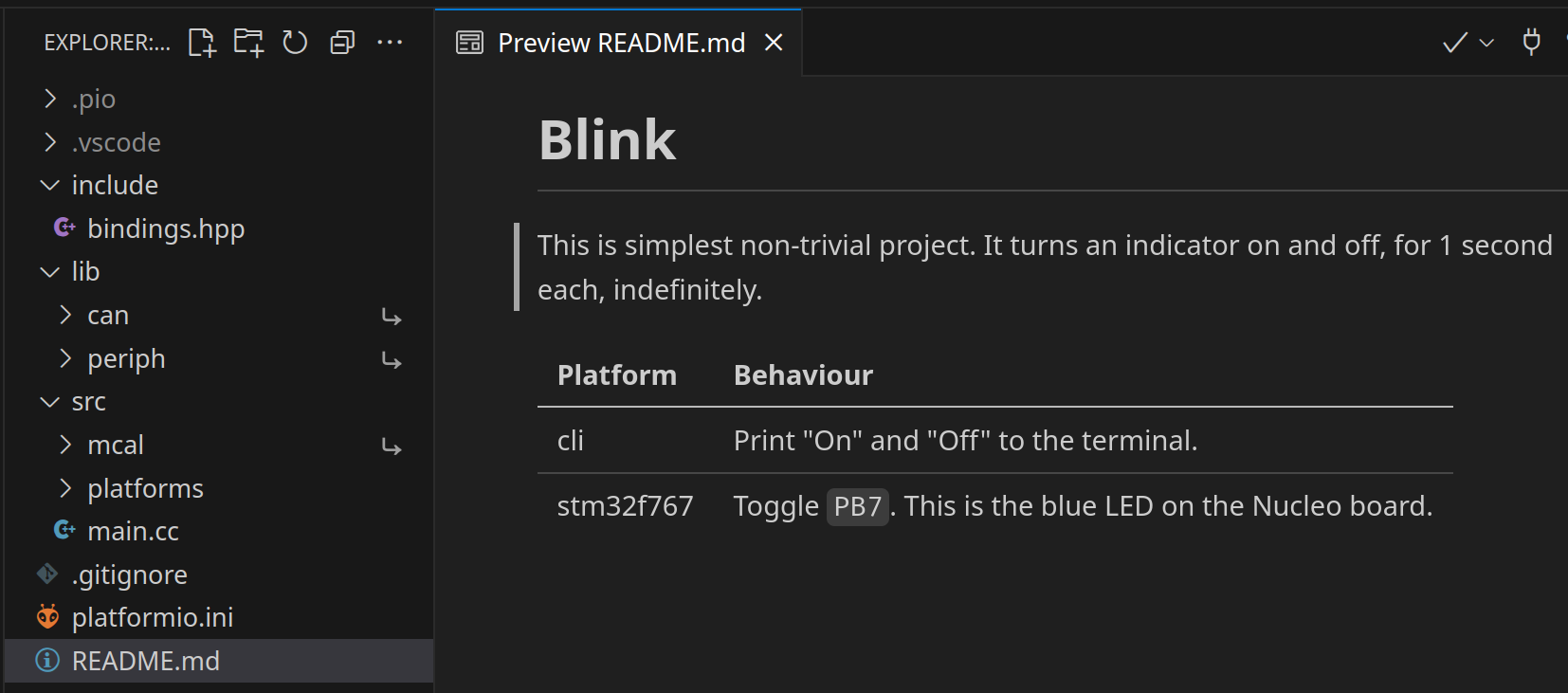

Whenever you see a README file, read it! It provides useful information about the code around it.

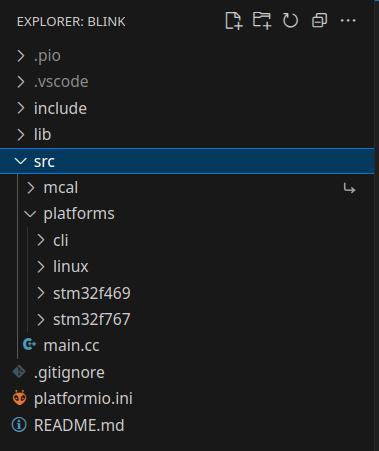

This folder contains the project "source code" (hence "src"), which is C and C++ code that tells the processor what to do.
Every project has a main.cc file with a main() function. This is where the program starts. Other projects may have more .cc files.
The src/ folder also has a platforms/ folder, with one subfolder per environment. This subfolder connects the abstract main code to a specific environment platform.
Finally, there is a symlink to racecar/lib/mcal. MCAL stands for "Micro-Controller Abstraction Layer," more on that in Architecture.
What is a symlink?
A symlink (symbolic link) is a "link" to another file or folder. It lets you easily reference far-away files.
In our case, we write the mcal code once, in racecar/lib/mcal, but want all projects to use it. A symlink lets each project reference the same mcal.

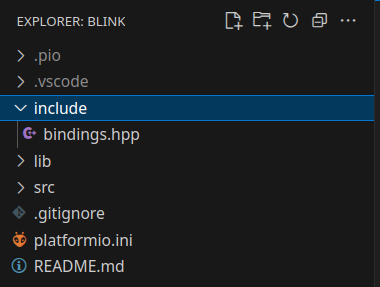

These are C++ header files which don't contain source code themselves, but are "included" by other source files in src/

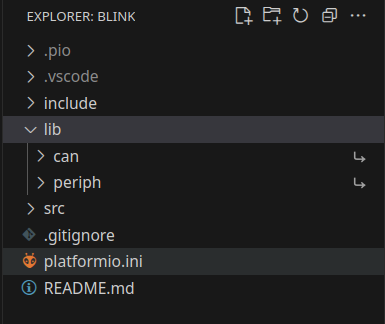

Library code is code which we write once for use in many projects. Each project's lib/ folder contains symlinks to folders racecar/lib depending on which shared code it needs to use.
For example, if you want to use a Lookup Table in a project, you would add a symlink to racecar/lib/lookup_table.
These are "hidden" folders managed by PlatformIO. You should not edit them.
Building and Uploading with PlatformIO

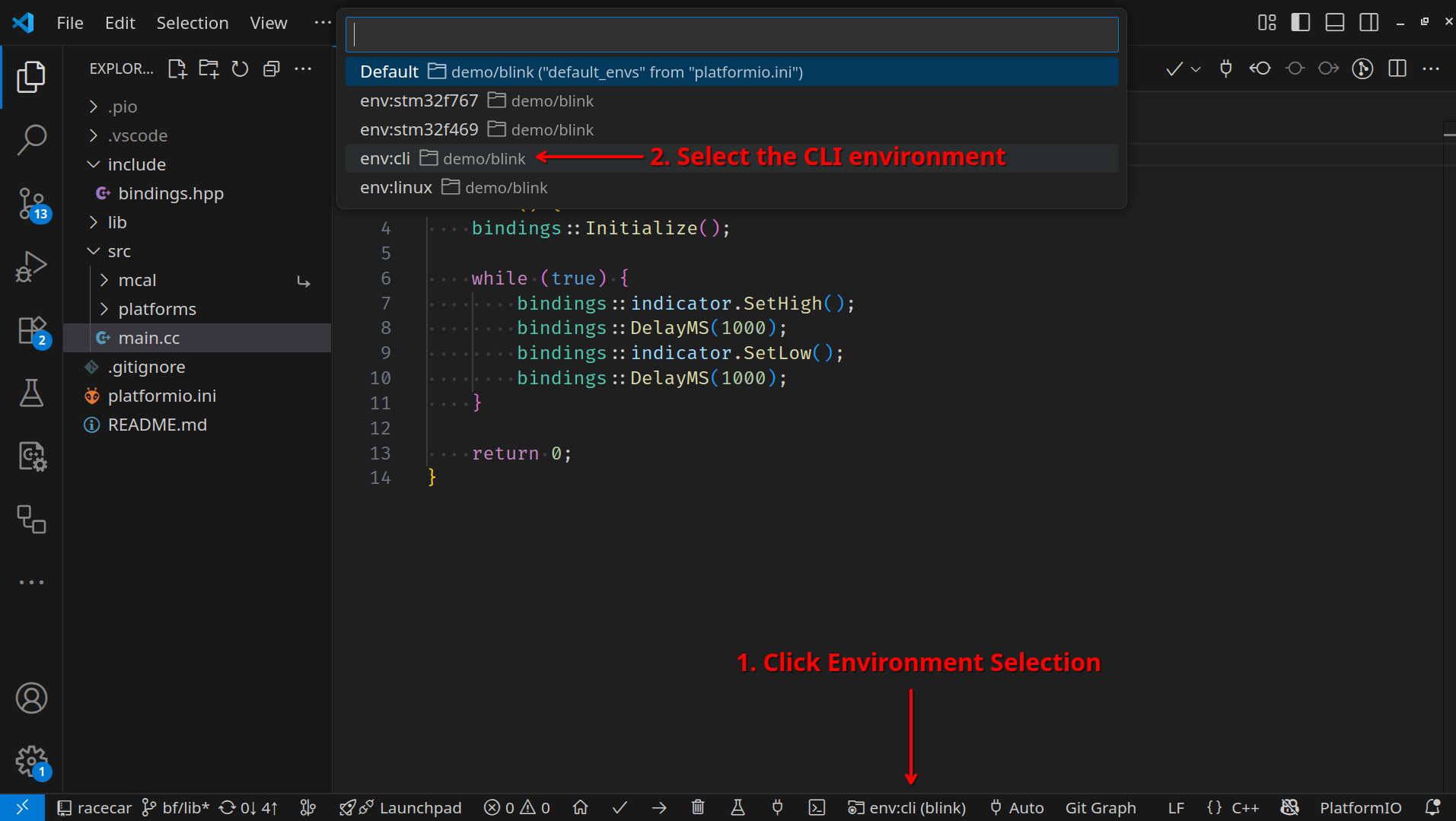

First, select which environment / platform you'd like to compile for. Since the Blink project supports CLI, we will be able to run it in our terminal, so let's select the cli environment.
PlatformIO will quickly reconfigure itself for the new environment.

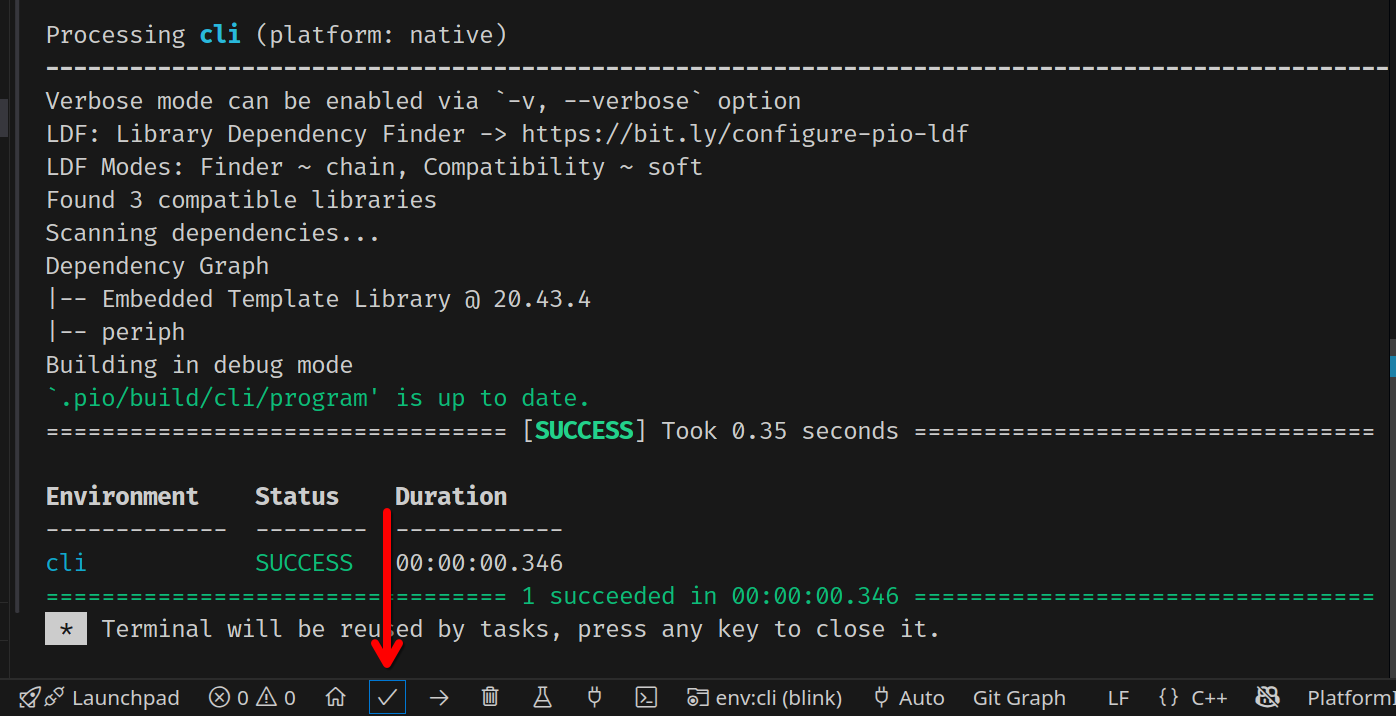

Click the Build button to build / compile the project. PlatformIO will open a window and display progress and any errors.
The first build may be slow since PlatformIO needs to install dependencies for each project and environment. Successive builds will be much faster.

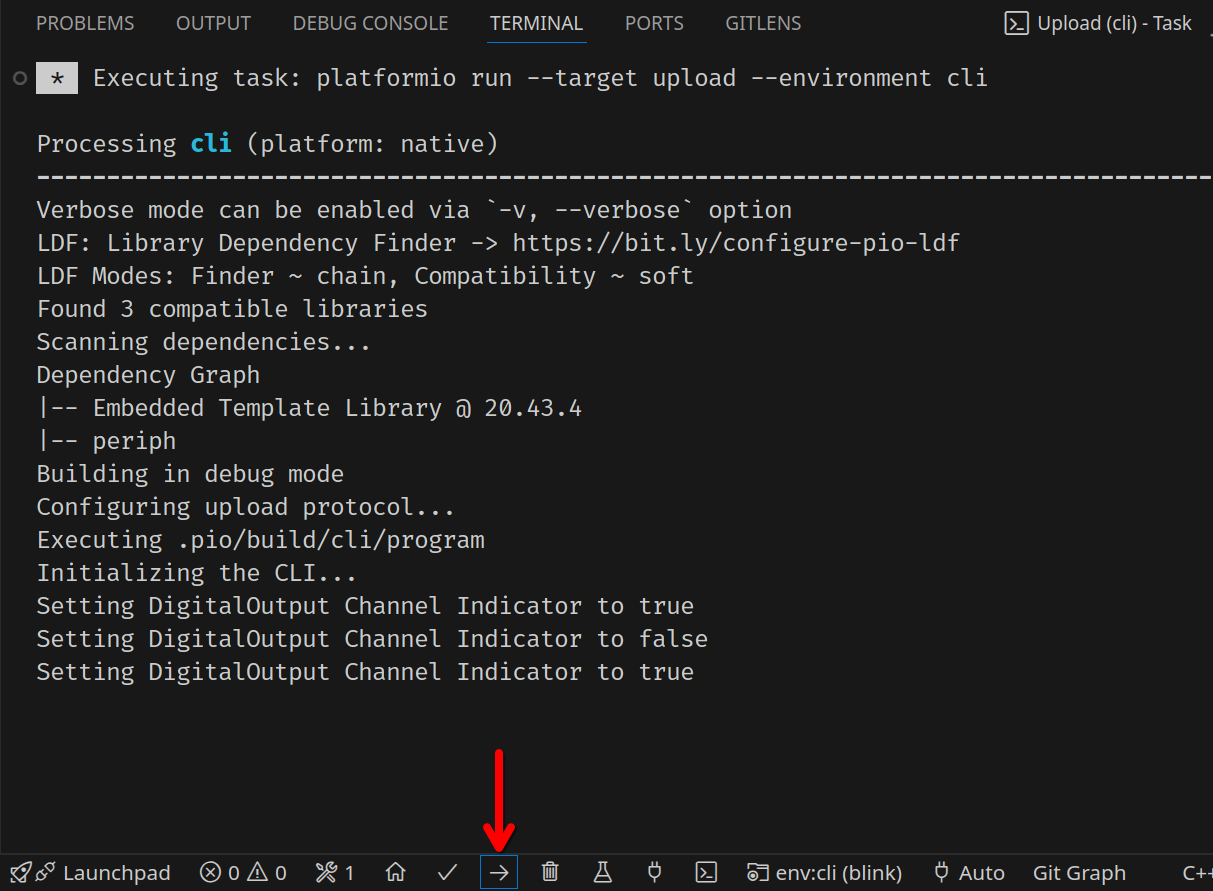

Click the Upload button to run the Blink program in your CLI.
To upload to STM, see Uploading Firmware to STM.
